Inside	Min Inside	Max Inside	Min Outside	Max Outside	Working pressure	Bend radius
mm	mm	mm	mm	mm	mpa	mm
5	4.8	5.5	12.7	13.7	21	75
6.3	6.4	7.2	14.3	15.3	21	85
8	7.9	8.7	16.7	17.6	15.7	100
11	10.3	11.1	18.9	20.0	14	115
12.5	12.7	13.7	22.8	24.0	12.2	140
16	15.9	17.0	26.8	28.0	10.5	165
22	22.2	23.3	30.6	32.2	5.6	185
29	28.6	29.8	37.3	38.9	4.3	230
35	34.9	36.1	43.7	45.2	3.5	265
46	46.0	47.2	55.2	57.6	2.4	335
60	60.3	61.9	71.8	74.2	2.4	610
78	76.2	77.8	89.3	91.7	1.4	840

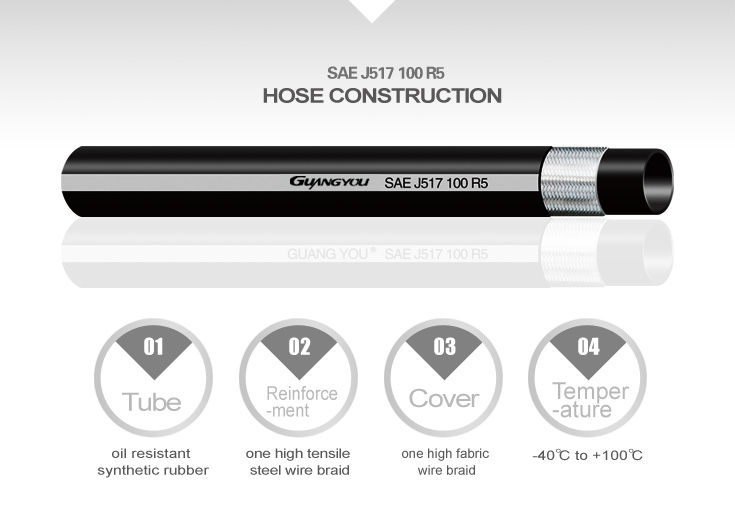

Hydraulic hose: oil resistant synthetic rubber, one high tensile steel wire braid
